Chatillon STS Series Torque Sensors For DFS2-R-ND (STS-0100)

Description

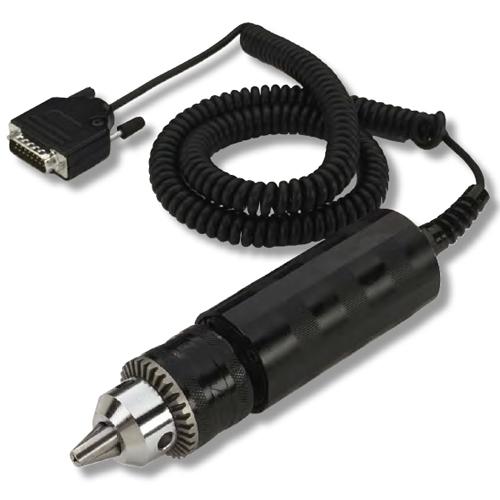

The CHATILLON® STS Series torque sensors are full-bridge strain gauge sensors complete with 15-pin plug. These sensors are used exclusively with the Chatillon DFS-R-ND Series digital indicator. The sensor’s torque values and sensitivity factors are stored in memory within the sensor plug. When connected to a DFS-R-ND indicator, the capacity and calibration points are automatically recognized by the instrument. The instrument then becomes a full-featured torque measurement instrument.

Typical applications: The STS-0100 pairs with compatible force gauges and test stands to add precise torque measurement — useful for cap/closure torque testing, fastener torque-to-break testing, and general rotational force verification.

Frequently Asked Questions

Q: What is the STS-0100?
A: The CHATILLON® STS Series torque sensors are full-bridge strain gauge sensors complete with 15-pin plug.

Q: What sensor technology does the STS-0100 use?
A: It uses a full-bridge strain gauge design.

Q: What is the STS-0100 compatible with?
A: It’s compatible with the Chatillon DFS-R-ND Series digital indicator.
