Lloyd Instruments LS1 Plus Standard

Description

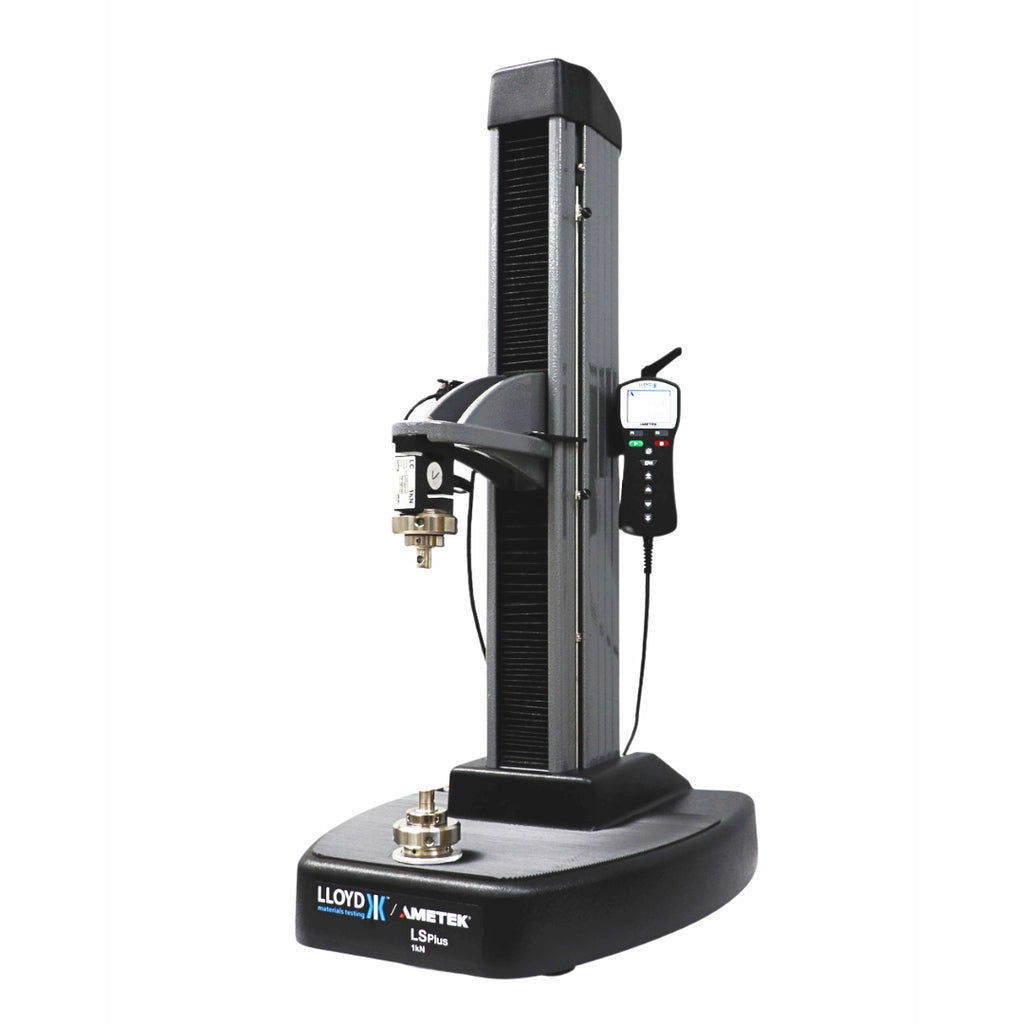

Lloyd Instruments LSPlus single-column materials testing machine for tensile, compression and cycling tests. Uses high-accuracy interchangeable YLC Series load cells.

Ideal for plastics, rubber, films, packaging and high-elongation materials. Available in standard, extended and pogo configurations. Works with NEXYGENPlus software.

Typical applications: The LS1 SH-230V-CNAU is used in materials testing labs, incoming inspection, and R&D for tensile, compression, peel, bend, and shear testing, supporting quality programs built around ASTM and ISO test standards.

Frequently Asked Questions

Q: What’s the capacity of the LS1 SH-230V-CNAU?
A: It’s rated for 1 kN / 225 lbf.

Q: What’s the crosshead speed range on the LS1 SH-230V-CNAU?
A: 0.01–2032 mm/min (model dependent).

Q: What’s the crosshead travel on the LS1 SH-230V-CNAU?
A: 500 mm / 19.7 in.

Q: How accurate is the load cell on the LS1 SH-230V-CNAU?
A: ±0.5% from 1% to 100% of capacity.

Q: What load cells work with the LS1 SH-230V-CNAU?
A: YLC Series (interchangeable).

Q: How accurate is the crosshead speed on the LS1 SH-230V-CNAU?
A: ±0.1% (above threshold speed).

Documentation
Download LS+ / TA+ Series Operation Manual (PDF) — Official Lloyd Instruments single-column materials testing machine manual.
Additional manuals: AMETEK Documentation Portal
