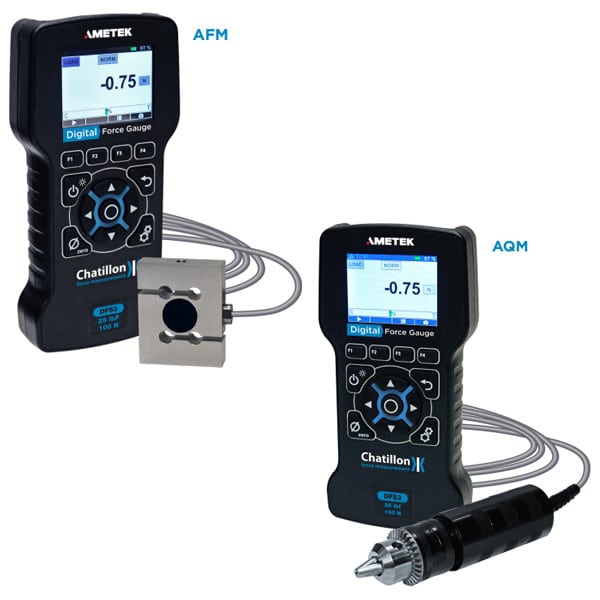

Chatillon DFS3 Series Digital Force Gauge with Software and USB Cable : ±0.1% FS : NIST Data : 50 x 0.001 lbf : #10-32M (DFS3-050)
$2,348.00
DFS3 Series Digital Force Gauge with Software and USB Cable : ±0.1% FS : NIST Data : 50 x 0.001 lbf : #10-32M
Description
Chatillon DFS3 Series advanced digital force gauge with higher accuracy and included ForceTest software. Suitable for handheld and test-stand applications requiring detailed data capture and analysis.
| Capacity | 50 lbf / 250 N |
| Accuracy | ±0.1% FS |
| Data sampling | 30 kHz |
| Peak capture | 30 kHz |
| Mounting thread | #10-32M |
| Overload protection | 150% of rated capacity |
| Software | ForceTest software included |
| Calibration | NIST-traceable certificate included |
Typical applications: materials testing, peel/seal strength, medical device testing, electronics, and production QC where ±0.1% accuracy and software reporting are required.
Documentation
Download DF3 Series User Manual (PDF) — Official Chatillon / AMETEK manual for DFE3 and DFS3 digital force gauges (setup, operation, calibration, and software).
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 3 × 1 × 7 in |
