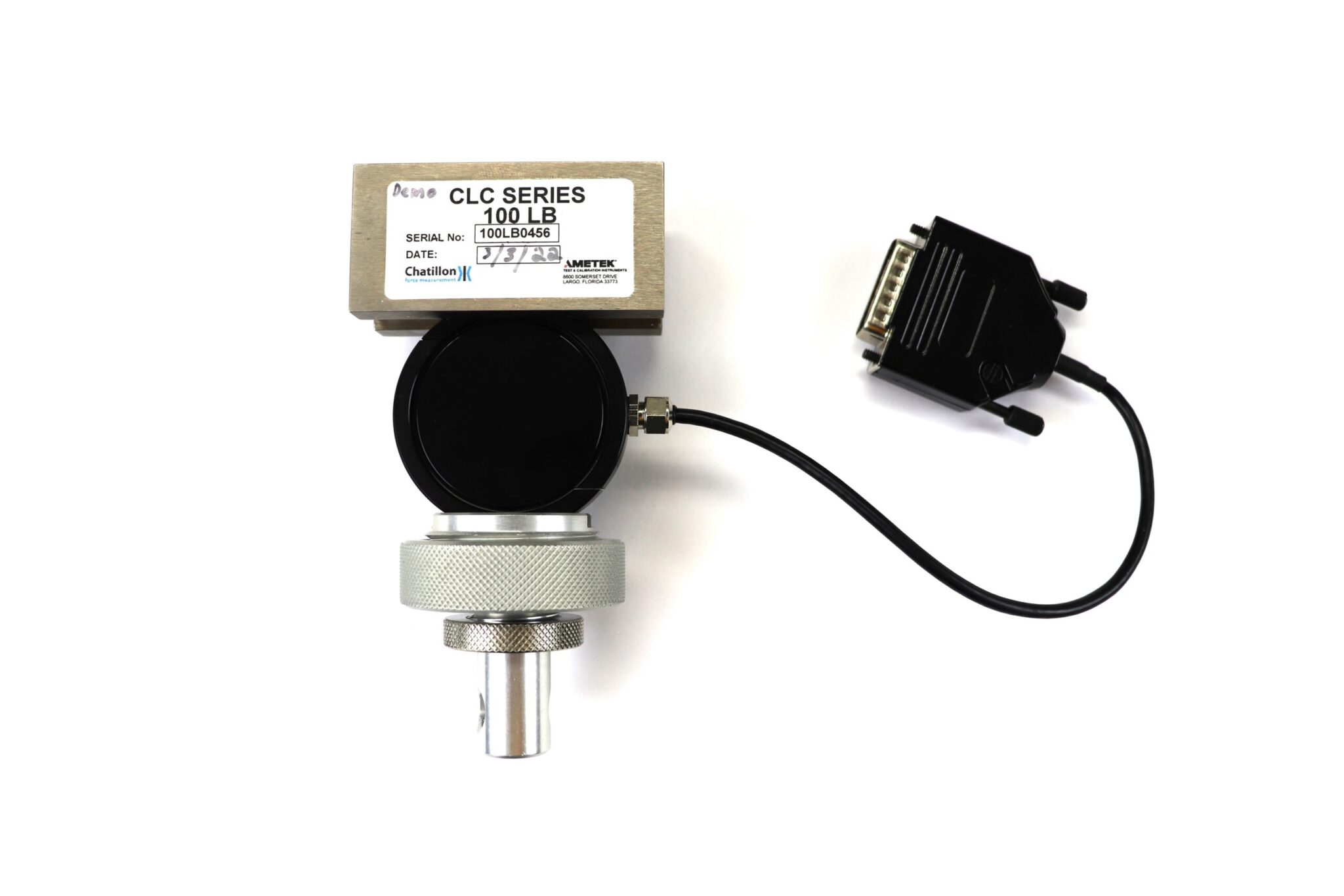

Chatillon CLC Series Load Cell Sensor (500N/100lbf) Dedicated (CLC-0100-DED)

Description

Full-bridge strain gauged load cell for Chatillon CS series force measurement testers. When connected, the machine automatically recognizes capacity and calibration points, converting the system into a full-featured load measurement instrument.

Applications: QC laboratories, R&D, production testing requiring reliable, traceable force data in tension and compression.

Typical applications: With a 500 N capacity, the CLC-0100-DED extends accurate, traceable force measurement for tensile and compression test frames used in materials testing labs.

Frequently Asked Questions

Q: What’s the capacity of the CLC-0100-DED?
A: It’s rated for 500 N / 100 lbf.

Q: How accurate is the CLC-0100-DED?
A: It’s rated at ±0.1% FS (dedicated calibration).

Q: What is the CLC-0100-DED compatible with?
A: Chatillon CS / CS2 series test machines.

Q: What sensor technology does the CLC-0100-DED use?
A: Full-bridge strain gauge.

Q: What connector does the CLC-0100-DED use?
A: 15-pin plug (auto-recognition).

Q: What configuration is the CLC-0100-DED?
A: Dedicated (matched calibration).

Documentation
CLC Series load cells are documented as part of the Chatillon CS / CS2 system manuals.
