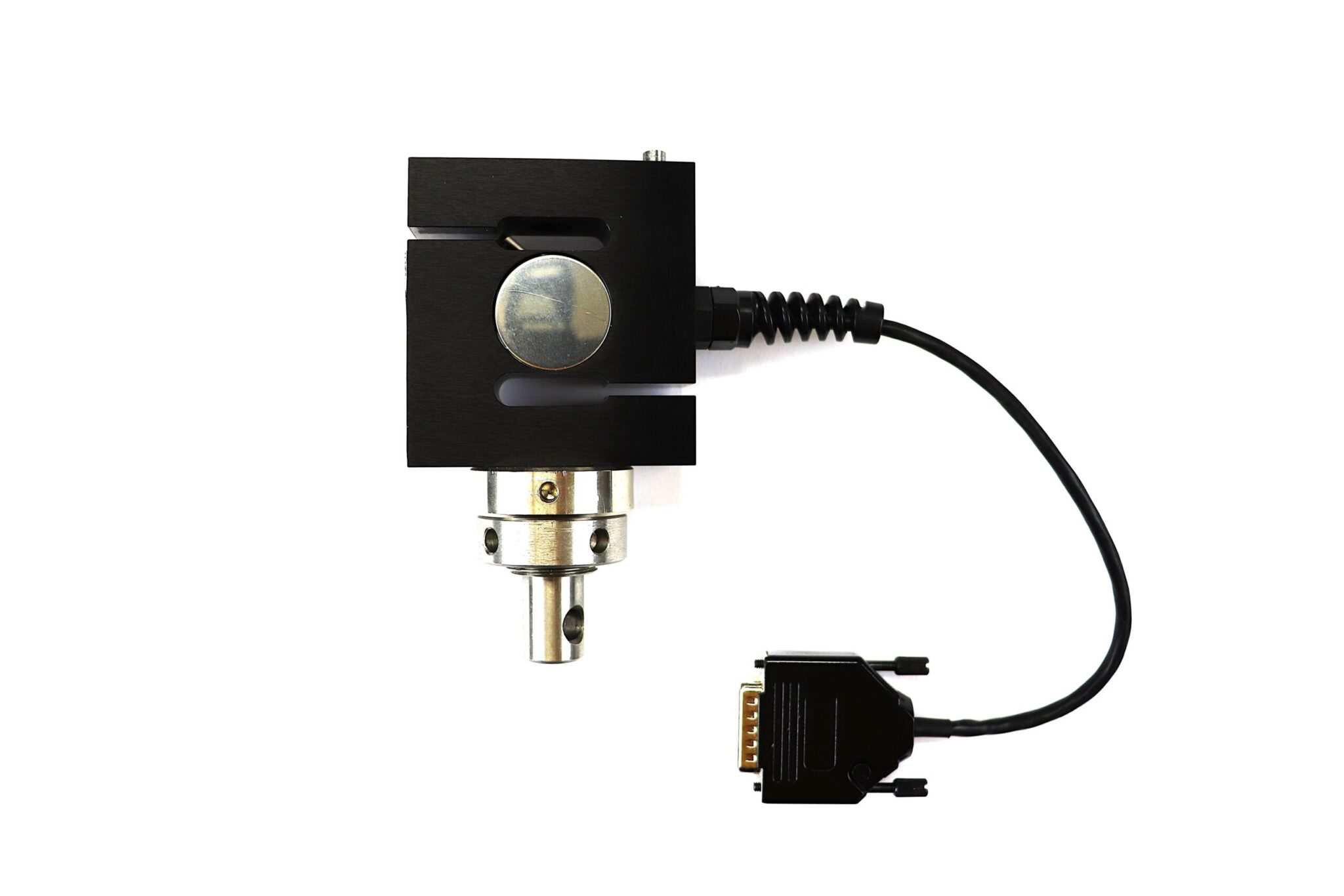

Chatillon CLC Series Load Cell Sensor (250N/50lbf) (CLC-0050)

Description

Full-bridge strain gauged load cell for Chatillon CS series force measurement testers. When connected, the machine automatically recognizes capacity and calibration points, converting the system into a full-featured load measurement instrument.

Applications: QC laboratories, R&D, production testing requiring reliable, traceable force data in tension and compression.

Typical applications: With a 250 N capacity, the CLC-0050 extends accurate, traceable force measurement for tensile and compression test frames used in materials testing labs.

Frequently Asked Questions

Q: What’s the capacity of the CLC-0050?
A: It’s rated for 250 N / 50 lbf.

Q: How accurate is the CLC-0050?
A: It’s rated at ±0.25% FS (standard).

Q: What is the CLC-0050 compatible with?
A: Chatillon CS / CS2 series test machines.

Q: What sensor technology does the CLC-0050 use?
A: Full-bridge strain gauge.

Q: What connector does the CLC-0050 use?
A: 15-pin plug (auto-recognition).

Documentation
CLC Series load cells are documented as part of the Chatillon CS / CS2 system manuals.
