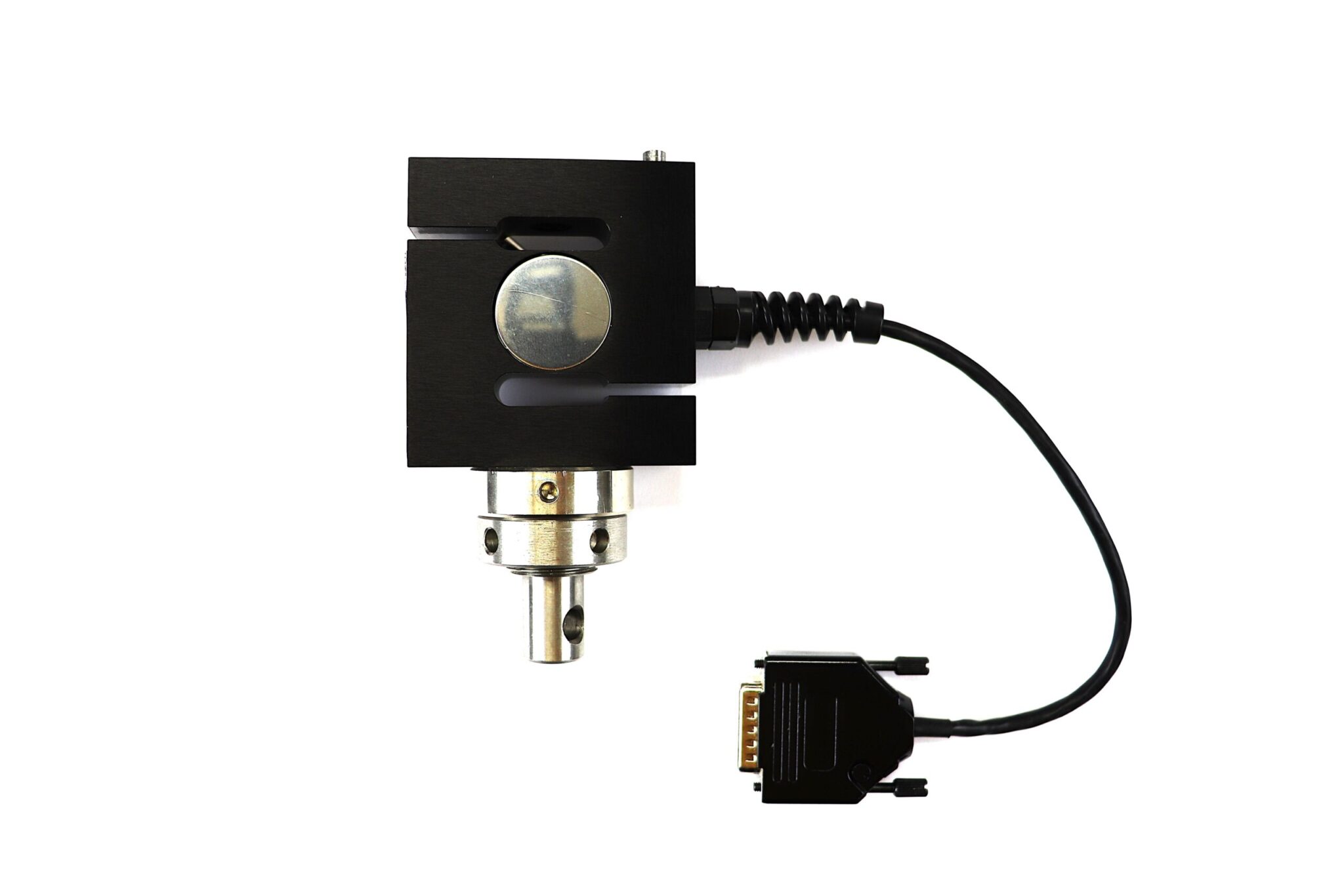

Chatillon CLC Series Load Cell Sensor (100N/20lbf) (CLC-0020)

Description

Full-bridge strain gauged load cell for Chatillon CS series force measurement testers. When connected, the machine automatically recognizes capacity and calibration points, converting the system into a full-featured load measurement instrument.

Applications: QC laboratories, R&D, production testing requiring reliable, traceable force data in tension and compression.

Typical applications: The CLC-0020’s 100 N capacity makes it a fit for materials testing systems that need precise force sensing across a comparable range.

Frequently Asked Questions

Q: What’s the capacity of the CLC-0020?
A: It’s rated for 100 N / 20 lbf.

Q: How accurate is the CLC-0020?
A: It’s rated at ±0.25% FS (standard).

Q: What is the CLC-0020 compatible with?
A: Chatillon CS / CS2 series test machines.

Q: What sensor technology does the CLC-0020 use?
A: Full-bridge strain gauge.

Q: What connector does the CLC-0020 use?
A: 15-pin plug (auto-recognition).

Documentation
CLC Series load cells are documented as part of the Chatillon CS / CS2 system manuals.
