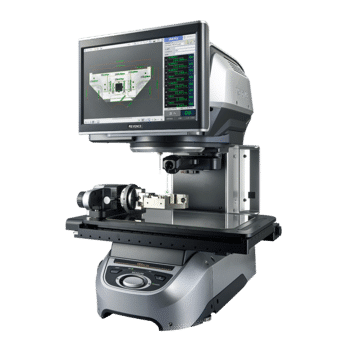

Keyence IM-8000 Series Image Dimension Measurement System
Contact us for pricing and availability.
Description
The KEYENCE IM-8000 series image dimension measurement system automatically detects and measures up to 300 dimensions per program in seconds, using a 20-megapixel CMOS sensor and a specially designed large-depth-of-field lens that keeps every measurement point in focus without custom fixturing.
| Sensor | 20-megapixel CMOS |
| Accuracy | ±2 µm |
| Stage speed | Up to 80 mm/s |
| Maximum part size | 300 × 200 mm |
| Throughput | Up to 100 parts per batch |
Typical applications: OD/ID, length, angle, flatness, cylindricity, coaxiality, and run-out measurement without custom fixtures.
