SmartScope SP

Designed for Optimum Scanning Probe Performance

SmartScope® SP systems are designed for optimum scanning probe performance. Starting with a rigid base structure, the system mechanics are designed to optimize dynamic data acquisition critical to scanning probe performance. Most performance specifications for SP models are according to ISO 10360 standards.

SmartScope SP optics combine a wide field objective lens, digital zoom, and 5 megapixel monochrome digital camera, providing a distortion-free 16 mm diagonal field of view at low zoom, with high resolution at high zoom. Careful design of both optics and illumination sources ensure accurate imaging at all zoom levels.

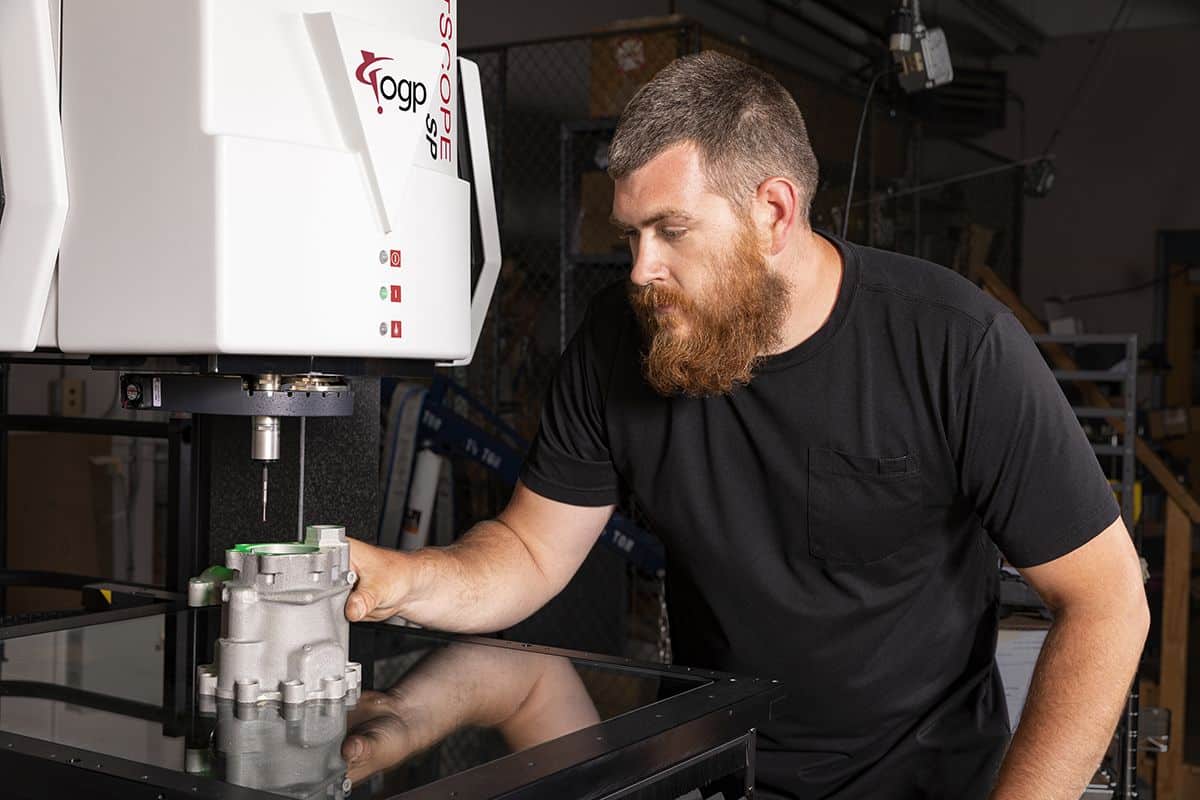

SmartScope SP systems are available in a range of XYZ machine travels. The SP25M scanning probe is included as standard with all SmartScope SP models. The optional TeleStar Plus laser offers very long working distance with sub-micron resolution. The on-axis and through-the-lens design allows laser measurement over the full measuring range of the system.

Click image to open expanded view

Benefits

Optimum Scanning Probe Performance

Exceptional Video Capabilities

Automatically Compensate Magnification for Each Zoom Position

Illumination to Measure the Most Challenging Parts from All Angles

3D Capability

Features

Rigid base structure

Megapixel camera with wide field lens

AccuCentric® motorized zoom lens

Standard profile light, coaxial surface light, and SmartRing™ light.

ZONE3 metrology software allows for 3D and CAD-based measurement with all sensors

SmartScope_SP_332_OGP-1-650x650

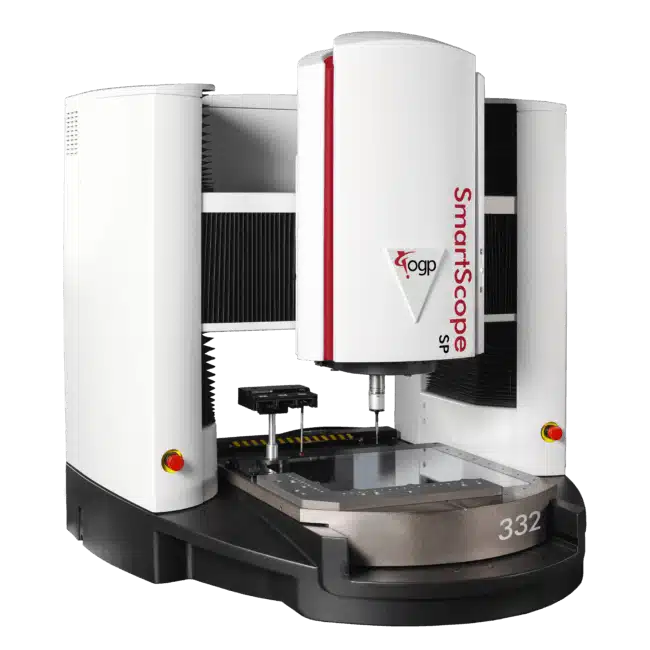

SmartScope SP 332

Large working volume on a benchtop system

SmartScope_SP_463_OGP-1-650x867

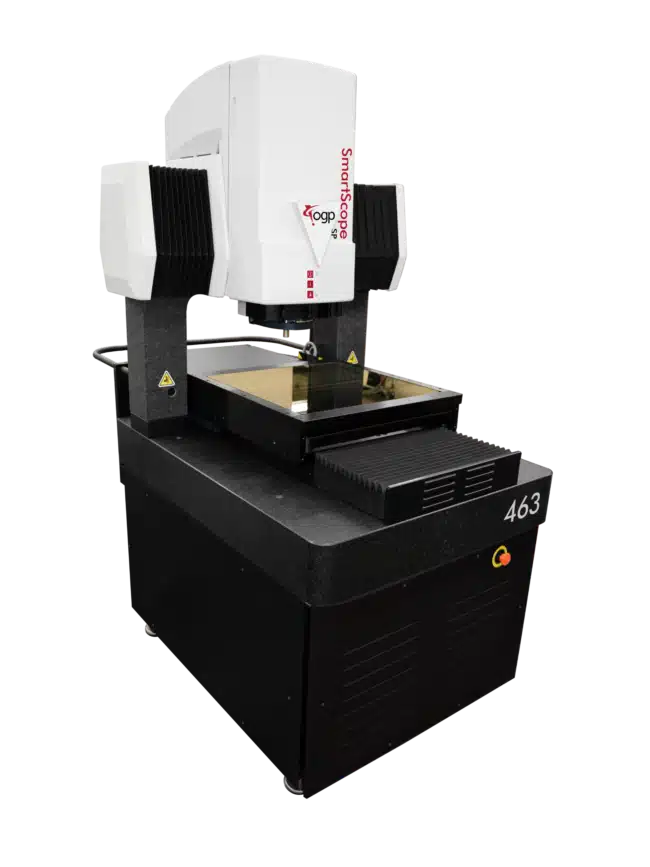

SmartScope SP 463

Rugged, floor model system of proven design to handle larger, heavier parts

SmartScope_SP_663_OGP-1-650x743

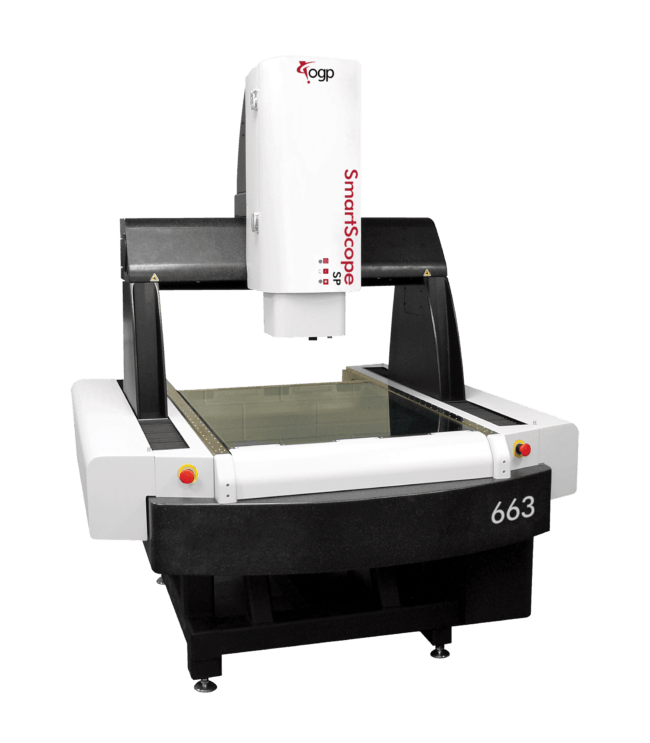

SmartScope SP 663

Large measuring volume and high payload capacity in compact footprint
