NON-CONTACT, SELF-CONTAINED LASER METROLOGY SYSTEM

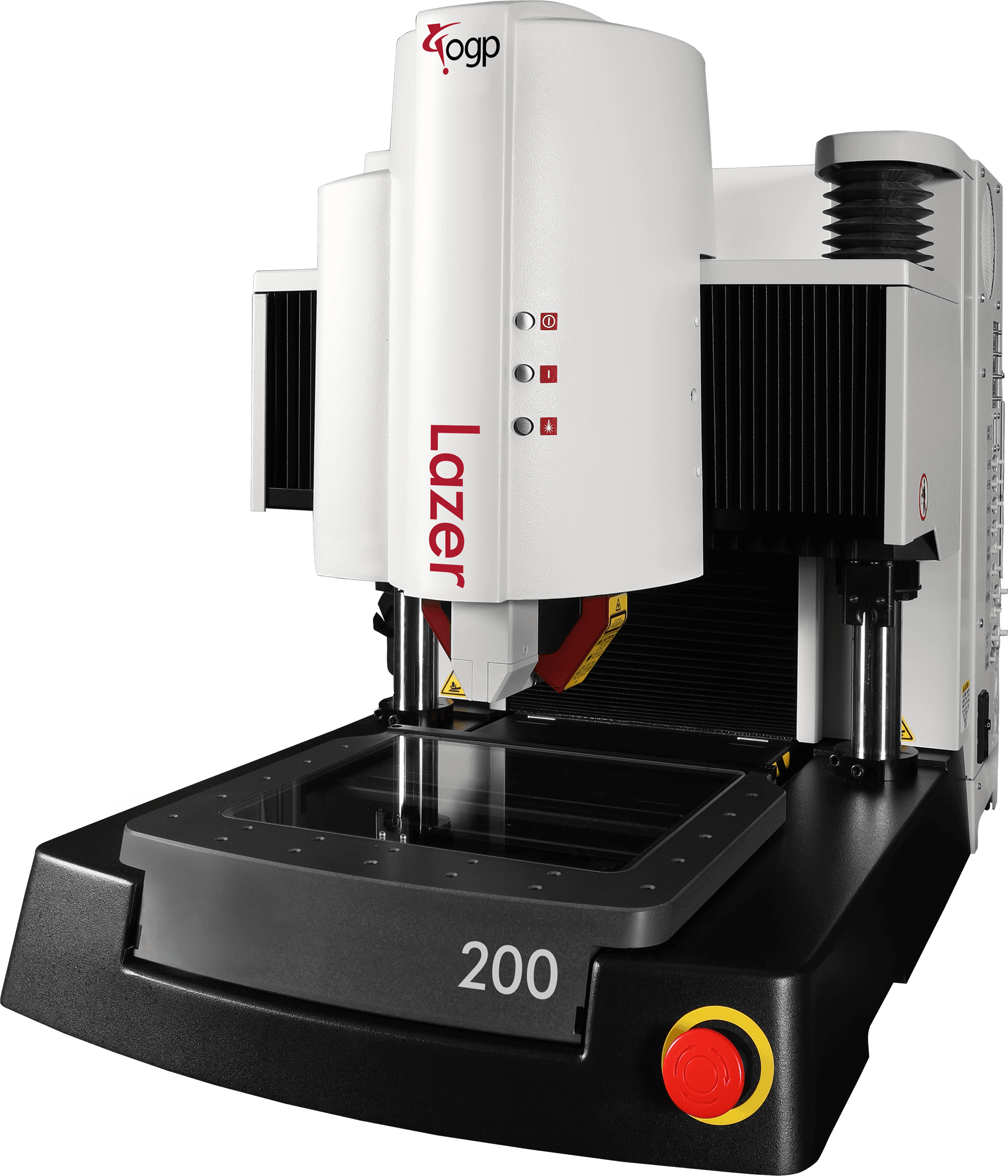

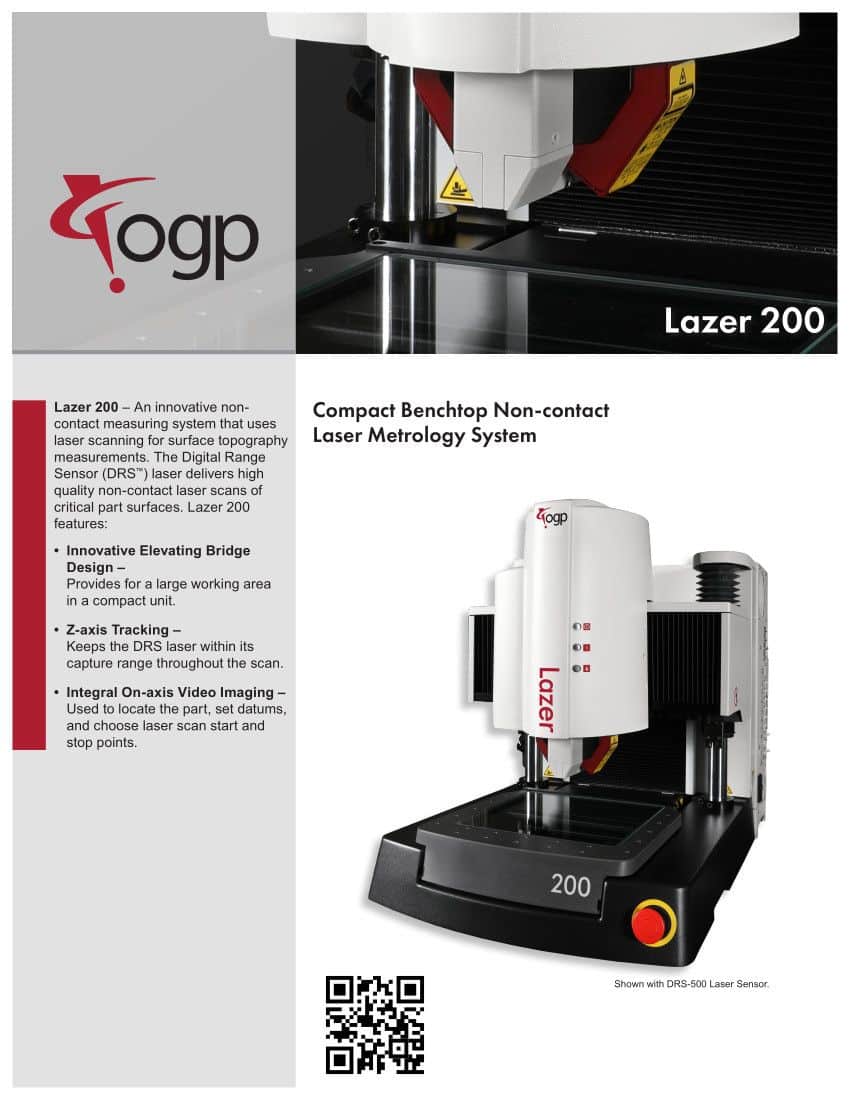

Lazer 200 is an innovative non-contact measuring system that uses laser scanning and video support for surface topography measurements.

The Digital Range Sensor (DRS™) laser delivers high quality non-contact laser scans of critical part surfaces.

Lazer 200 features a mechanically innovative “elevated bridge” design that creates the most compact system of any machine with comparable travel

Chassis axial straightness and perpendicularity are machined in Z-axis travel keeps the DRS laser within its capture range throughout the scan

Integral on-axis video imaging is used to locate the part, set datums, and choose laser scan start and stop points
