Focus
High quality, full-function 14” optical comparators with the most advanced technology available
XY Travel Standard 12” x 5”

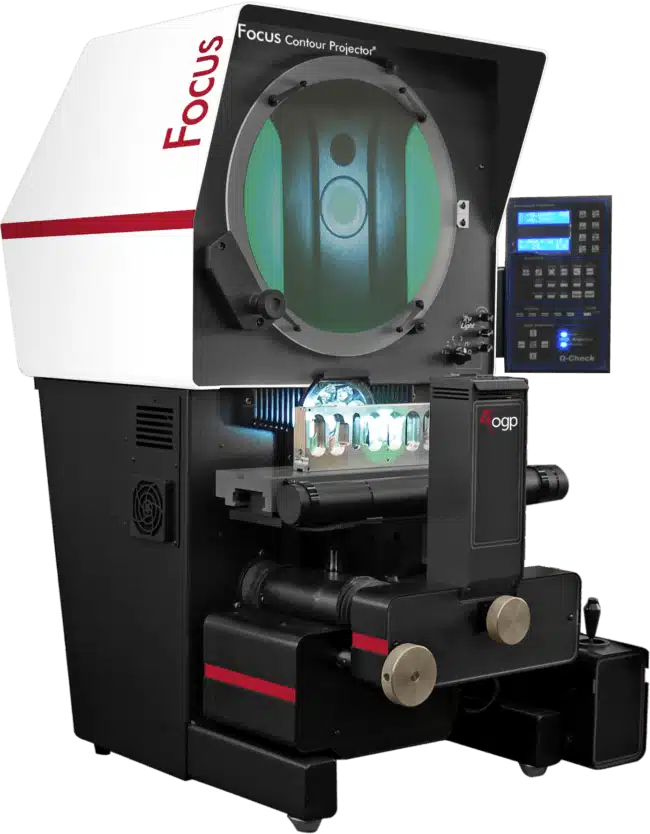

Focus™ Contour Projector® systems are high quality, full-function 14” optical comparators with the most advanced technology available and offer:
Vectored light control – Versatile TruLight® LED lighting illumination
Keep lenses safe and ready for use – 3 position internal lens turret
Ideal for real world, shop floor environments in a benchtop configuration – Rigid, all steel construction and solid metal castings
Optional VidiProbe video measurement, optional motorized servo drives, and optional Projectron automatic internal edge detection
Technical Data
XY Travel
Standard
12” x 5”
Optics
Lens Options
10X, 20X, 31.25X, 50X, 100X
Illumination
Profile Light, Coaxial Light, and Oblique Surface Illumination
Screen
16” diameter, 14” viewable ground glass screen, with integral hood, 90° centerlines and clips for mounting overlay charts
WorkTable
Standard
Manual, hard coat anodized aluminum with dovetail slot and ±6.5° helix angle range
Optional
Motorized with variable speed joystick
Software
Options/Accessories
Downloads
Optical Comparator Charts, Fixtures and Accessories Catalog

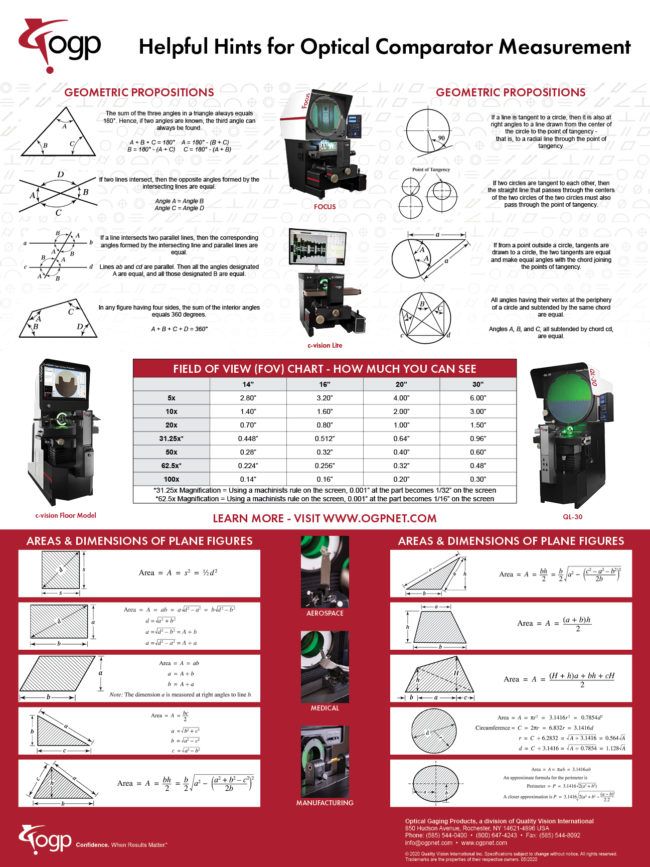

Optical Comparator Posters

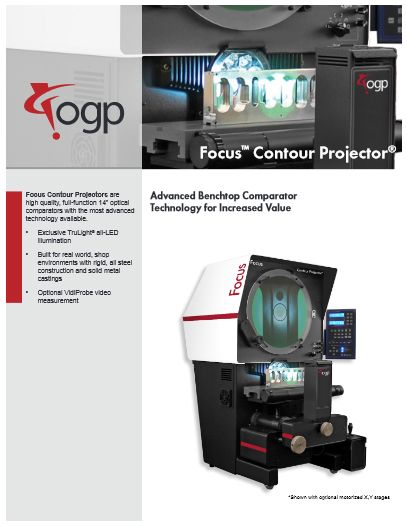

Focus Contour Projector Data Sheet
