C-Vision systems are truly versatile – providing the best of both worlds
c-vision™ Video Contour Projectors® from OGP combine the speed and accuracy of a video measurement system with the rugged capacity of an optical comparator to create the world’s best shop-floor measuring tools for 2D measurement. Video measurement systems offer high magnification and the speed of automatic measurement, using a high-resolution digital image. With 60% more magnification range than a standard comparator, users can accurately measure features up to 4 inches without refocusing the worktable, while still measuring fine details on parts. c-vision benchtop and floor models are built for large, heavy parts with a load capacity up to 250 lbs. c-vision systems come equipped with impressive capabilities such as a durable build, large screens for measurement versatility, innovative optics, long service life, and more, making it the perfect option for contour projection needs.
Benefits
Accurate Image with exceptionally low distortion over entire viewing area
Shop hardened and convenient
Create and run measurement routines, perform "walk-up and measure" tasks well as fitting the measurement data to 2D CAD for profile and GD&T analysis
Simple but accurate operator controls for fast shop-floor measurements
Features
Internally mounted lenses with digital megapixel metrology cameras
Tough construction, high load capacity, and large viewing screen for shop floor use
Measure-X™ Compare virtual chart gage software displays both standard and custom overlay charts - direct from DXF CAD files
Motorized XY table with precision linear scales and fine adjusters

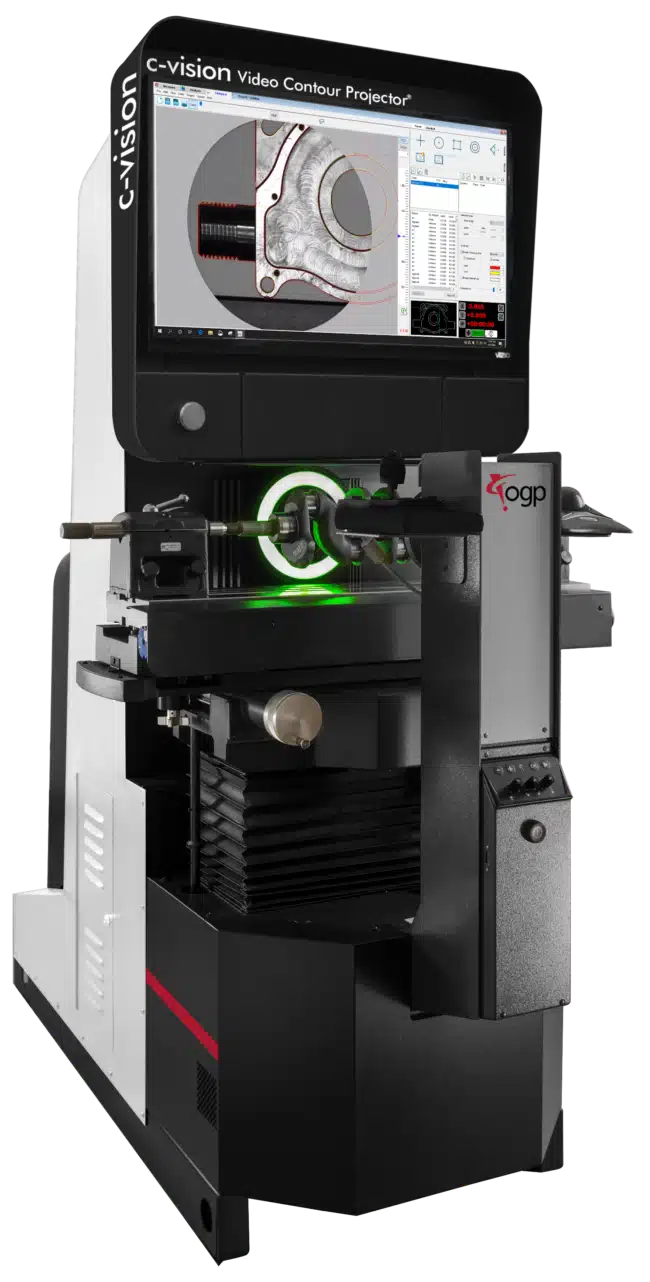

C-vision Floor Model Video Contour Projector
The ultimate, shop floor hardened, high payload capacity video contour projector

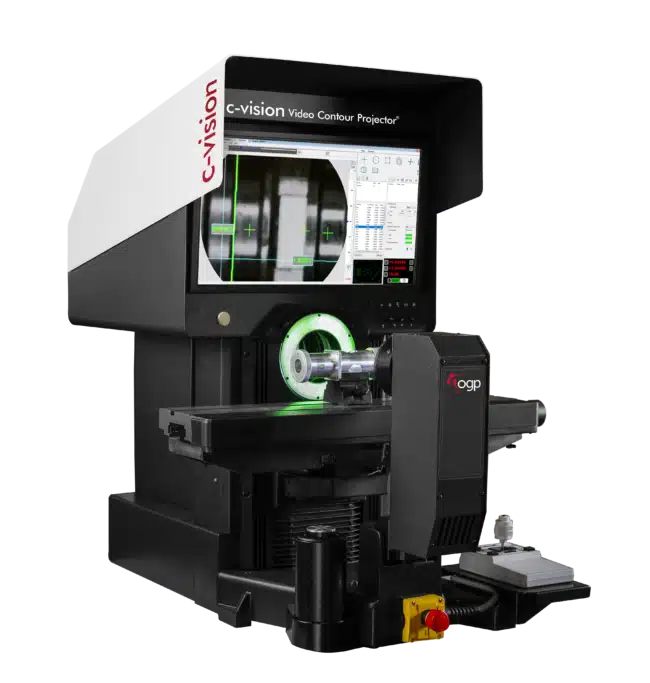

C-vision Benchtop Video Contour Projector
An easy to use, dual-magnification benchtop video contour projector

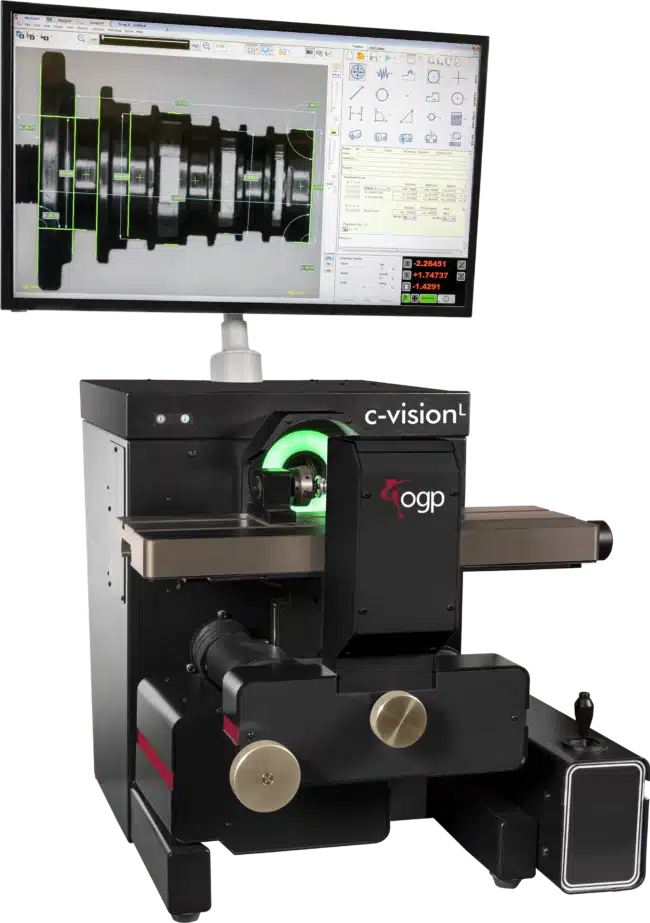

C-vision Lite Video Contour Projector
Easy-to-use shop floor measuring system that fits on a workbench
